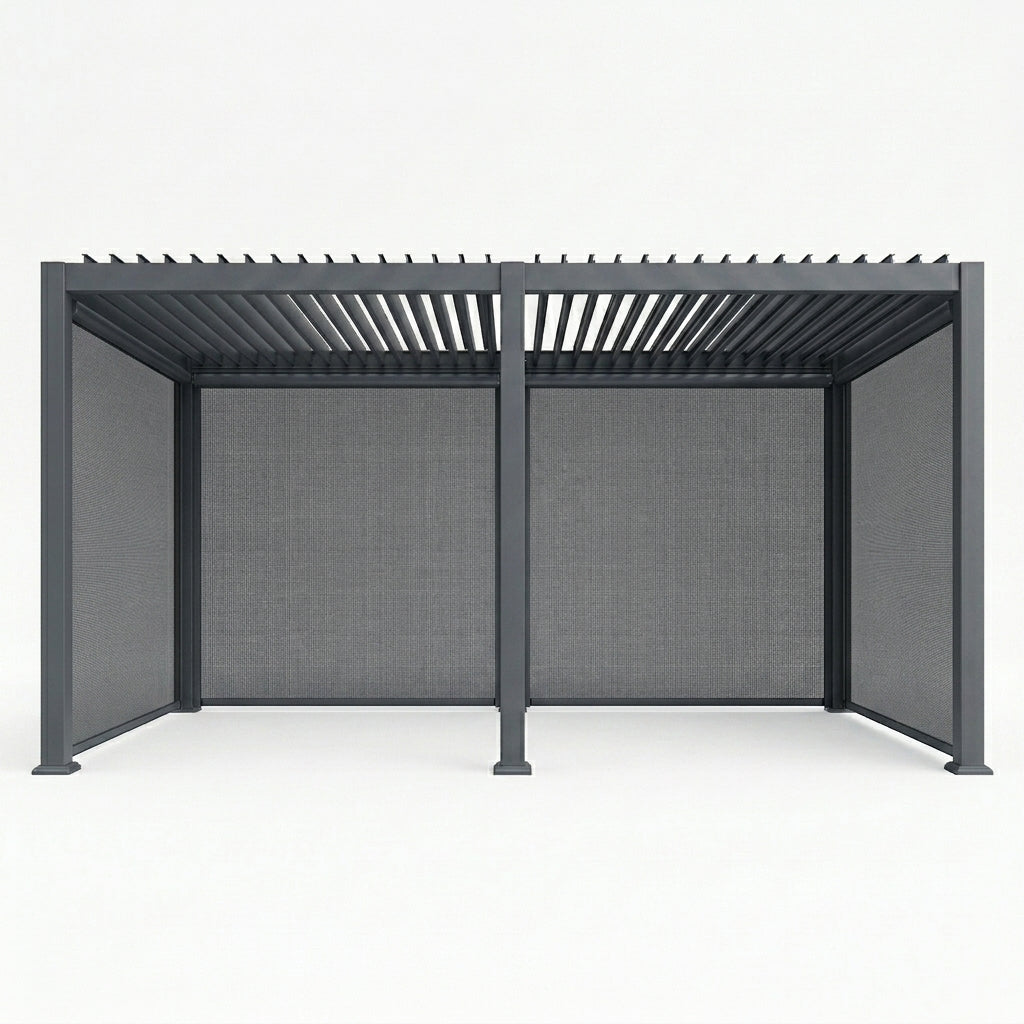

Meridian 6m x 3m Aluminium Louvred Pergola With 4 Side Blinds

Sale price £5,900.00 Regular price £6,099.00 Save £199
  • Expansive 6m x 3m footprint: seats eight to ten, or splits into separate dining and lounge zones
  • Includes four manual side blinds for privacy and shelter, bundled to save versus buying separately
  • Adjustable louvred roof: open for sun, tilt for shade, close for a watertight cover
  • Premium 6063-T5 aluminium and triple-layer powder coating for a rust-free, low-maintenance finish
  • 12cm leg profile for a premium, architectural silhouette
  • Free delivery included
Optional Extras:
3m Pergola Blind

3m Pergola Blind

£450.00
In Stock
More Info
Pergola Installation Service: 6m x 3m

Pergola Installation Service: 6m x 3m

£800.00
In Stock
More Info

Product Overview

Designed to elevate any space, this furniture piece combines modern aesthetics with functional design.

The largest in the Meridian range, the 6m x 3m aluminium pergola turns a wide patio into a full outdoor room, and this bundle adds four manual side blinds for privacy and shelter. Carried on a central support post, it hosts an eight to ten-seat dining set, or separate dining and lounge zones under one roof.
Constructed from 6063-T5 aluminium with Grade 304 stainless steel screws and stainless crank gears, the frame is corrosion-resistant, UV-stable and finished in a triple-layer powder coating for long-term durability. The clean graphite grey silhouette adds architectural structure while staying understated and timeless.
Precision-engineered double-layer louvres rotate up to 90 degrees to control light and airflow: open them for sun, tilt them for diffused shade, or close them fully for a watertight roof when it rains. This bundle includes four manual side blinds that pull down and raise back up easily, giving you privacy and shelter from low sun and wind, while an integrated drainage system carries rainwater through the frame and away from your seating. Pair it with a Cape & Co. furniture set to complete the room.

Read More
  • Overall footprint: 5,985mm x 3,085mm
  • Roof / covered area: approximately 17.9 m2 (roof frame 5,920 x 3,020mm)
  • Overall height: 2,500mm
  • Clearance height (under the beam): 2,335mm
  • Posts: 120mm x 120mm, on 185mm x 185mm base plates (plus a central support post)
  • Beams: 75mm wide x 140mm high
  • Louvre blades: 173mm x 30mm, double-walled, 90 degree rotation
  • Side blinds: four included, aluminium frame with Textaline fabric
  • Recommended base: a firm, level concrete or tiled surface for a secure fixing
  • Aluminium alloy: 6063-T5
  • Frame: posts 120 x 120mm, beams 140 x 75mm, 1.3mm wall; central support post
  • Finish: triple-layer powder coating, graphite grey
  • Roof louvres: double-walled, 173 x 30mm, rotate up to 90 degrees, clip-in with baffle plates
  • Operation: manual crank, 1:6 gear ratio, stainless steel gears
  • Drainage: integrated guttering with concealed downpipes
  • Side blinds: four included, manual, aluminium frame with Textaline fabric
  • Hardware: Grade 304 stainless steel screws
  • Colour: Graphite Grey
  • Warranty: structure 2 years; powder coating, crank gears and side blinds 1 year each
  • Delivery: included (free), UK mainland
  • Installation: Optional add-on, includes ground fixing
  • 1 x Meridian 6m x 3m aluminium louvred pergola frame, graphite grey, with central support post
  • 4 x manual side blinds (aluminium frame, Textaline fabric)
  • Double-layer adjustable louvre roof with manual crank
  • Integrated drainage system (guttering and concealed downpipes)
  • All fixings and ground anchors
  • Free delivery to your address (UK mainland)
  • Built-in privacy: four manual side blinds that pull down and raise back up in seconds
  • Shade and shelter on demand: adjust the roof to suit the moment
  • Rainproof closed, breezy open: usable in sun or showers
  • Engineered for British weather, designed for year-round use
  • Quiet, smooth manual crank (1:6 stainless gears), no electrics to maintain
  • Custom-designed clip-in double-walled louvres with baffle plates and no exposed roof screws, making installation quick and simple

Add professional installation at checkout and our team builds it and fixes it to the ground for you
Clean the frame and blinds with mild soapy water and a soft cloth, then rinse and air dry
Close the louvres and raise the side blinds in very high winds
A firm, level concrete or tiled base is the ideal surface for installation
The powder-coated finish needs no painting or treatment

Read More

Fabric & Function

A premium aluminium louvred pergola engineered for refined, all-season British outdoor living.

What Our Customers Think

Reviews from gardens across the UK.

Frequently Asked Questions

Yes. The extended footprint comfortably accommodates long 10 to 12 seat dining tables while still allowing for separate lounge or seating areas beneath the same structure.

Yes. The 6m span is ideal for dual entertainment layouts, allowing you to position a dining table in one zone and a lounge or sofa set in another, with added privacy from the integrated side blinds.

Yes. The blinds should be fully retracted during strong or high winds to protect the fabric and maintain long-term durability.

When fully closed, the double-layer louvres provide reliable shelter from rain. The integrated drainage system channels water through the frame and down the legs, helping to keep the space below protected in typical UK conditions.

Delivery is included in the price for all locations across mainland UK. A professional installation service is available at a competitive market price. Just add installation to your basket in the add-ons section. After ordering, you will be contacted to provide details and photographs of the installation area to confirm suitability before scheduling the installation.

No. In most standard residential settings, a 6m x 3m pergola does not require planning permission under permitted development rules, provided it is no higher than 2.5 metres and is not positioned forward of the principal elevation of the house.

If you are unsure about your specific property circumstances, it is always sensible to confirm with your local authority.
