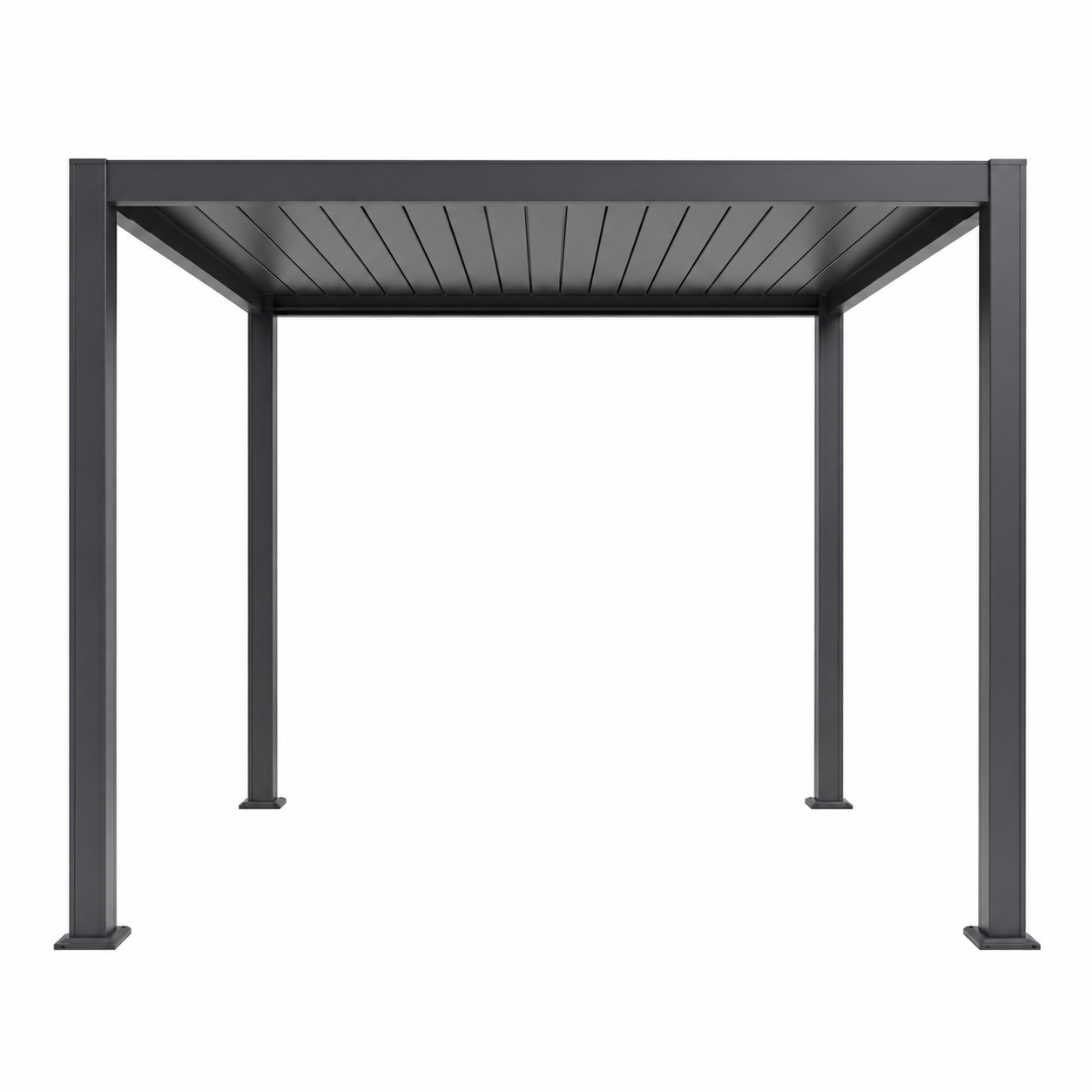

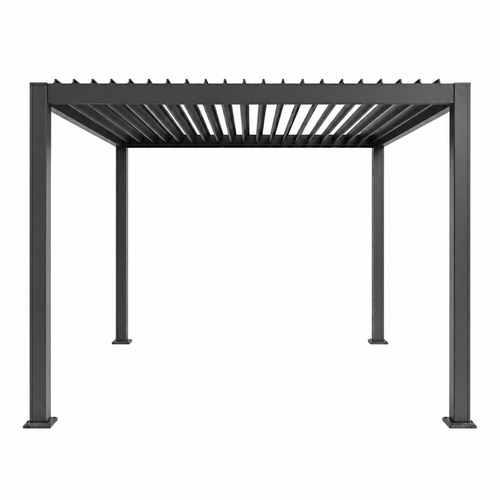

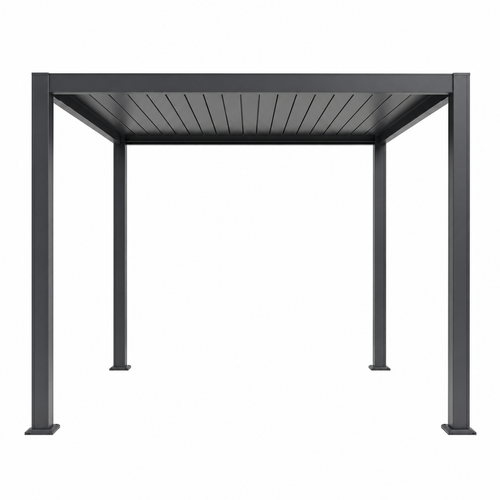

Meridian 3m x 3m Aluminium Louvred Pergola

Regular price £2,799.00

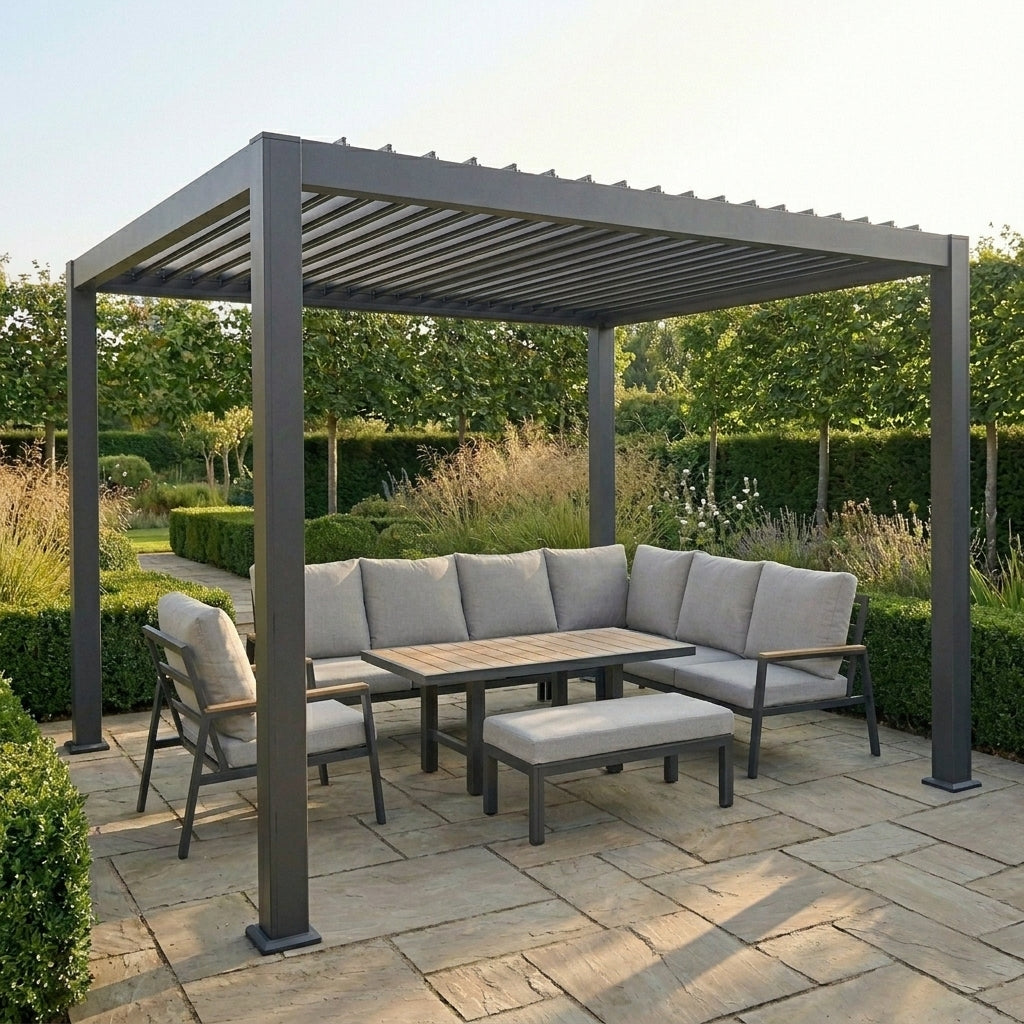

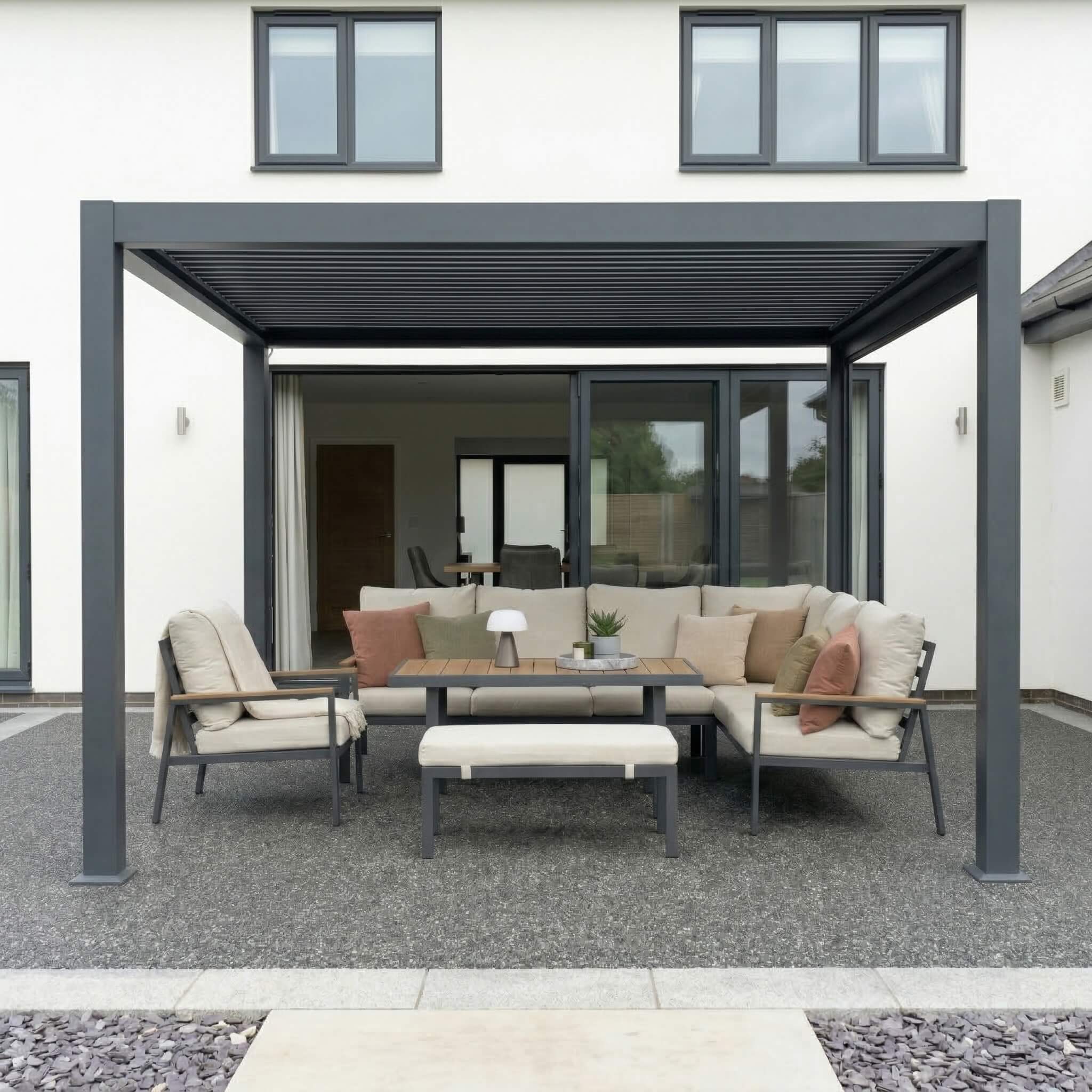

  • Generous 3m x 3m footprint: seats a four to six-seat dining set or corner lounge set
  • Adjustable louvred roof: open for sun, tilt for shade, close for a watertight cover
  • Premium 6063-T5 aluminium and triple-layer powder coating for a rust-free, low-maintenance finish
  • Integrated guttering and concealed downpipes keep rain off your seating
  • 12cm leg profile for a premium, architectural silhouette
  • Free delivery, with professional installation available



Color: Graphite Grey
Optional Extras:
3m Pergola Blind

3m Pergola Blind

£450.00
In Stock
More Info
Pergola Installation Service (3m x 3m and 4m x 3m)

Pergola Installation Service (3m x 3m and 4m x 3m)

£500.00
In Stock
More Info

Product Overview

Designed to elevate any space, this furniture piece combines modern aesthetics with functional design.

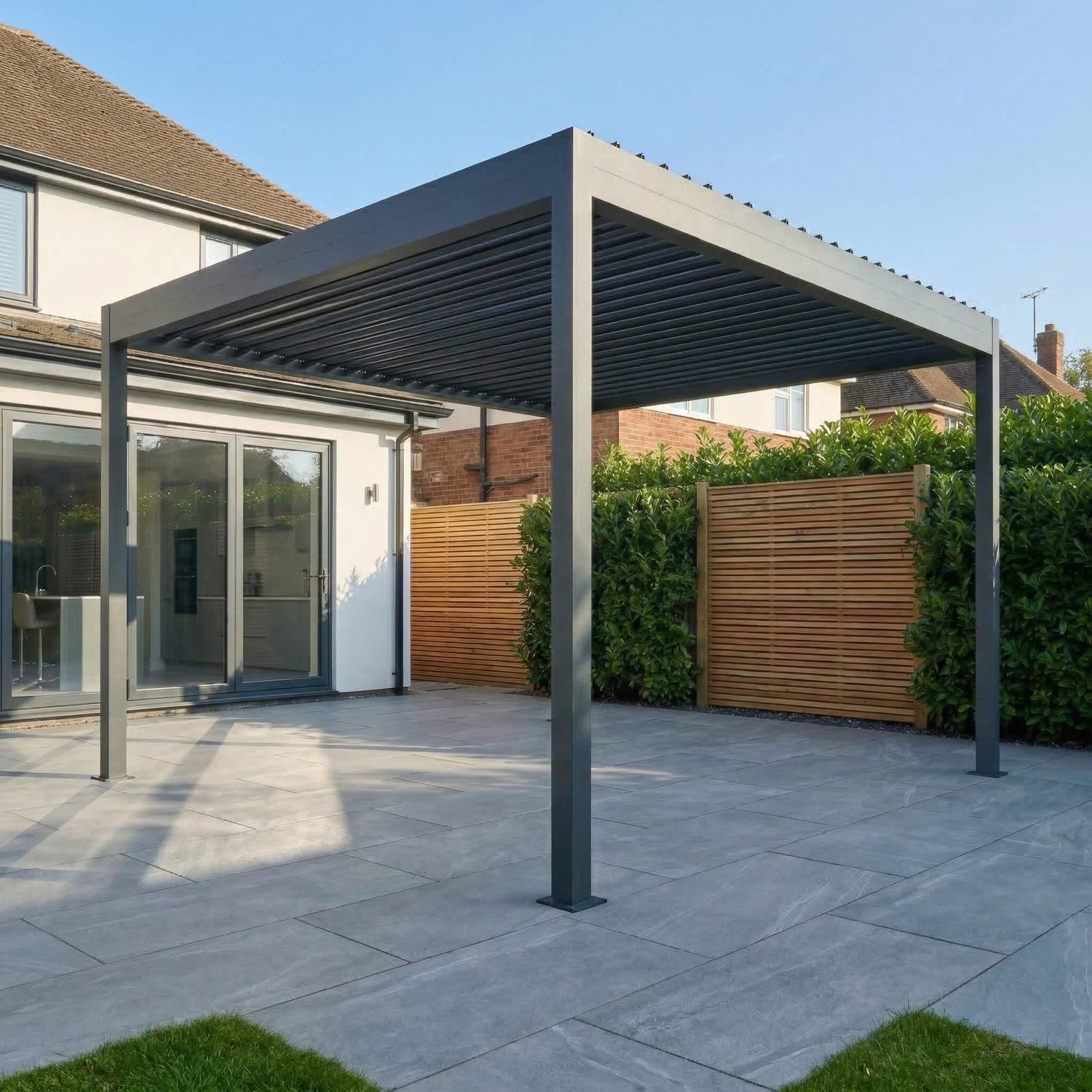

Where the Meridian range begins, the 3m x 3m aluminium pergola creates a neat, well-defined outdoor room for patios and smaller gardens. Its square footprint suits a four to six seat dining set or a compact sofa set, giving you a sheltered place to sit out whatever the weather.
Constructed from 6063-T5 aluminium with Grade 304 stainless steel screws and stainless crank gears, the frame is corrosion-resistant, UV-stable and finished in a triple-layer powder coating for long-term durability. It is rated to withstand winds of up to 88 km/h, around Beaufort force 9 (a strong gale). The clean graphite grey silhouette adds architectural structure while staying understated and timeless.

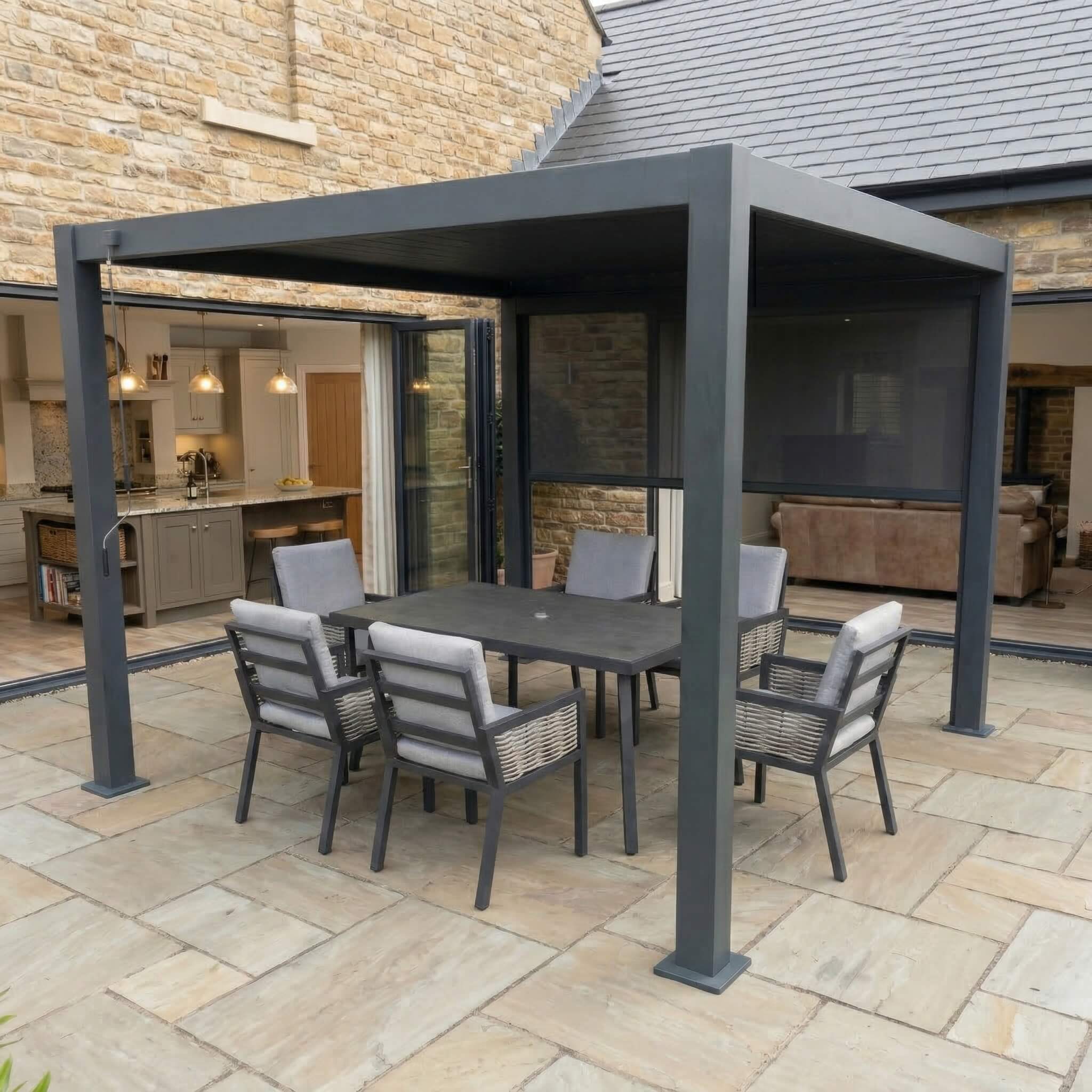

Precision-engineered double-layer louvres rotate up to 90 degrees to control light and airflow: open them for sun, tilt them for diffused shade, or close them fully for a watertight roof when it rains. An integrated drainage system carries rainwater through the frame and away from your seating, so the space stays usable when the weather turns. Add up to three manual side blinds to block low sun and wind, and pair it with a Cape & Co. furniture set to complete the room.
Pairs with Cape & Co. furniture for a complete outdoor room.

Read More

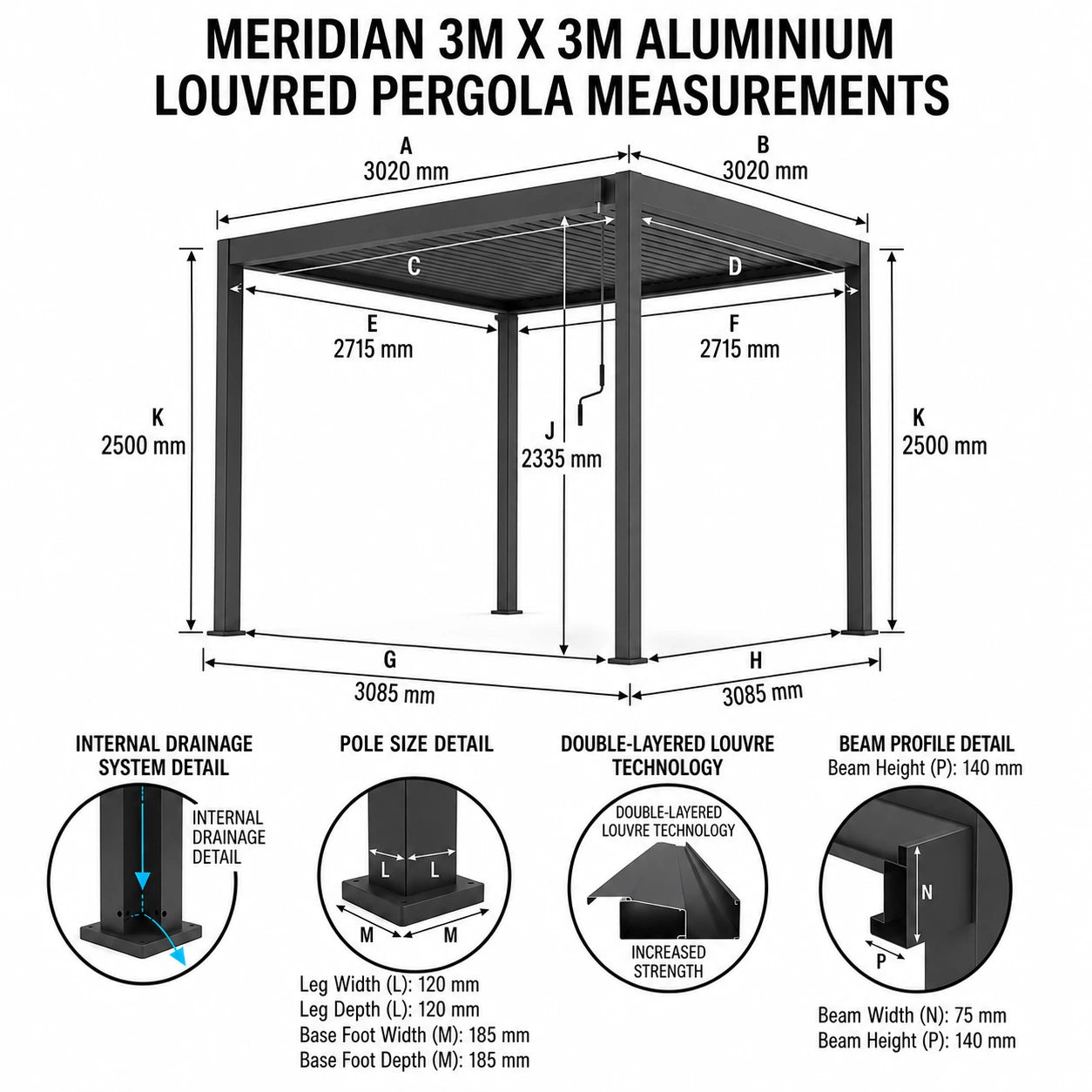

  • Overall footprint: 3,085mm x 3,085mm
  • Roof / covered area: approximately 9.1 m2 (roof frame 3,020 x 3,020mm)
  • Overall height: 2,500mm
  • Clearance height (under the beam): 2,335mm
  • Posts: 120mm x 120mm, on 185mm x 185mm base plates
  • Beams: 75mm wide x 140mm high
  • Louvre blades: 173mm x 30mm, double-walled, 90 degree rotation
  • Recommended base: a firm, level concrete or tiled surface for a secure fixing
  • Aluminium alloy: 6063-T5
  • Frame: posts 120 x 120mm, beams 140 x 75mm, 1.3mm wall
  • Finish: triple-layer powder coating, graphite grey
  • Roof louvres: double-walled, 173 x 30mm, rotate up to 90 degrees, clip-in with baffle plates
  • Operation: manual crank, 1:6 gear ratio, stainless steel gears
  • Drainage: integrated guttering with concealed downpipes
  • Wind resistance: up to 88 km/h (around 55 mph, Beaufort force 9)
  • Hardware: Grade 304 stainless steel screws
  • Side blinds: optional, aluminium frame with Textaline fabric
  • Colour: Graphite Grey
  • Warranty: structure 2 years; powder coating, crank gears and side blinds 1 year each
  • Delivery: included (free), UK mainland
  • Installation: Optional add-on, includes ground fixing
  • 1 x Meridian 3m x 3m aluminium louvred pergola frame, graphite grey
  • Double-layer adjustable louvre roof with manual crank
  • Integrated drainage system (guttering and concealed downpipes)
  • All fixings and ground anchors
  • Free delivery to your address (UK mainland)
  • Shade and shelter on demand: adjust the roof to suit the moment
  • Rainproof closed, breezy open: usable in sun or showers
  • Engineered for British weather, designed for year-round use
  • Quiet, smooth manual crank (1:6 stainless gears), no electrics to maintain
  • Custom-designed clip-in double-walled louvres with baffle plates and no exposed roof screws, making installation quick and simple
  • Discreet integrated drainage keeps the lines clean

Add professional installation at checkout and our team builds it and fixes it to the ground for you
Clean with mild soapy water and a soft cloth, then rinse and air dry
Close the louvres in very high winds
A firm, level concrete or tiled base is the ideal surface for installation
The powder-coated finish needs no painting or treatment

Read More

Fabric & Function

A premium aluminium louvred pergola engineered for refined, all-season British outdoor living

What Our Customers Think

Reviews from gardens across the UK.

Frequently Asked Questions

Yes. The Meridian 3m x 3m aluminium pergola comfortably accommodates a six-seat outdoor dining set or a compact lounge configuration. Its square footprint creates a defined outdoor room while maintaining efficient use of space.

A 3m x 3m pergola comfortably accommodates a six-seat dining set, while still offering flexibility for other layouts. It is equally well suited to outdoor lounge sets, modular sofa sets, sun loungers, compact bistro tables or even a hot tub, depending on how you wish to use the space.

For a cohesive finish, we recommend exploring our curated pergola furniture bundles, designed to complement the architectural lines of the Meridian range and create a complete outdoor living room.

Yes. The Meridian pergola is engineered for year-round British outdoor living. The tilting louvres allow you to adapt to sunshine, passing showers and cooler conditions, creating a flexible space throughout the seasons.

When fully closed, the double-layer louvres provide reliable shelter from rain. The integrated drainage system channels water through the frame and down the legs, helping to keep the space below dry in typical UK conditions.

Yes. Delivery and professional installation are included for Mainland England. After ordering, you will be contacted to provide details and photographs of the installation area to confirm suitability before installation is scheduled.

No. In most standard residential settings, a 3m x 3m pergola does not require planning permission under permitted development rules, provided it is no higher than 2.5 metres and is not positioned forward of the principal elevation of the house.

If you are unsure about your specific property circumstances, it is always sensible to confirm with your local authority.
