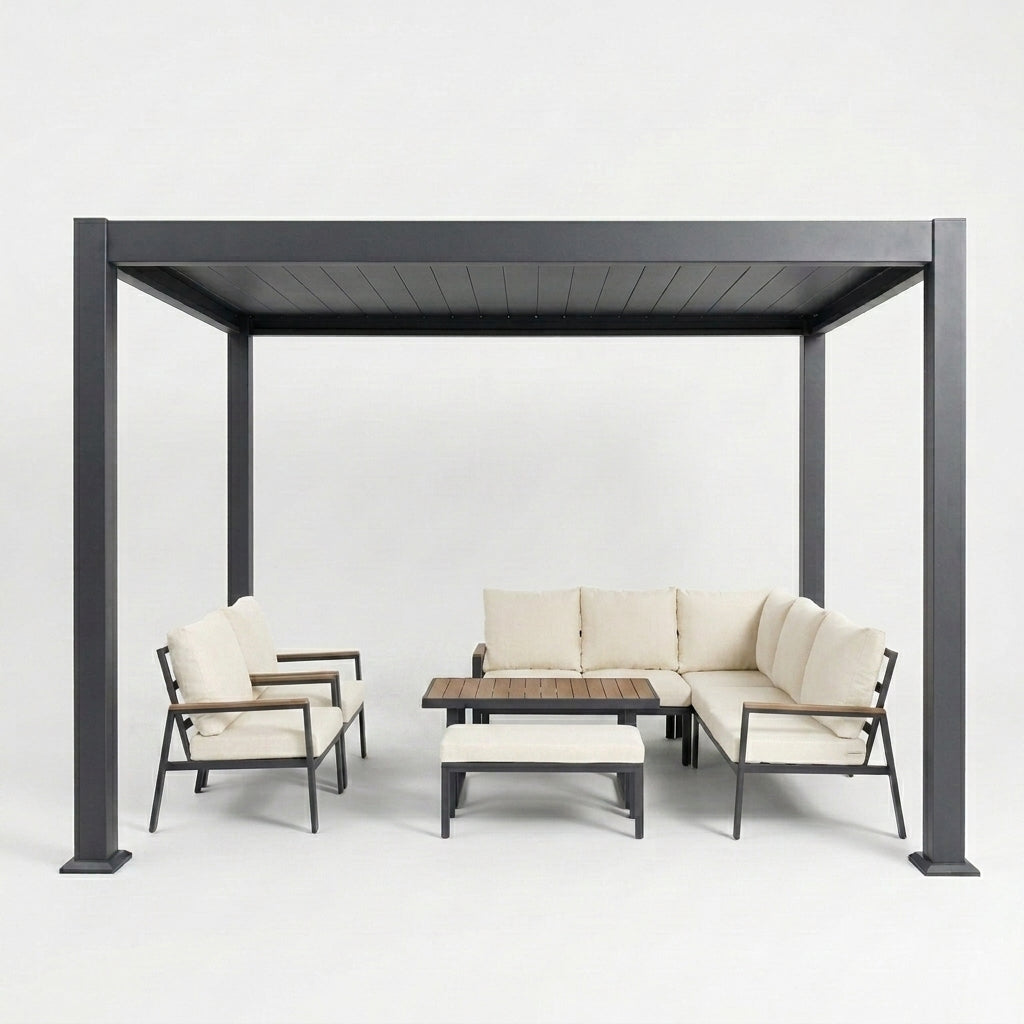

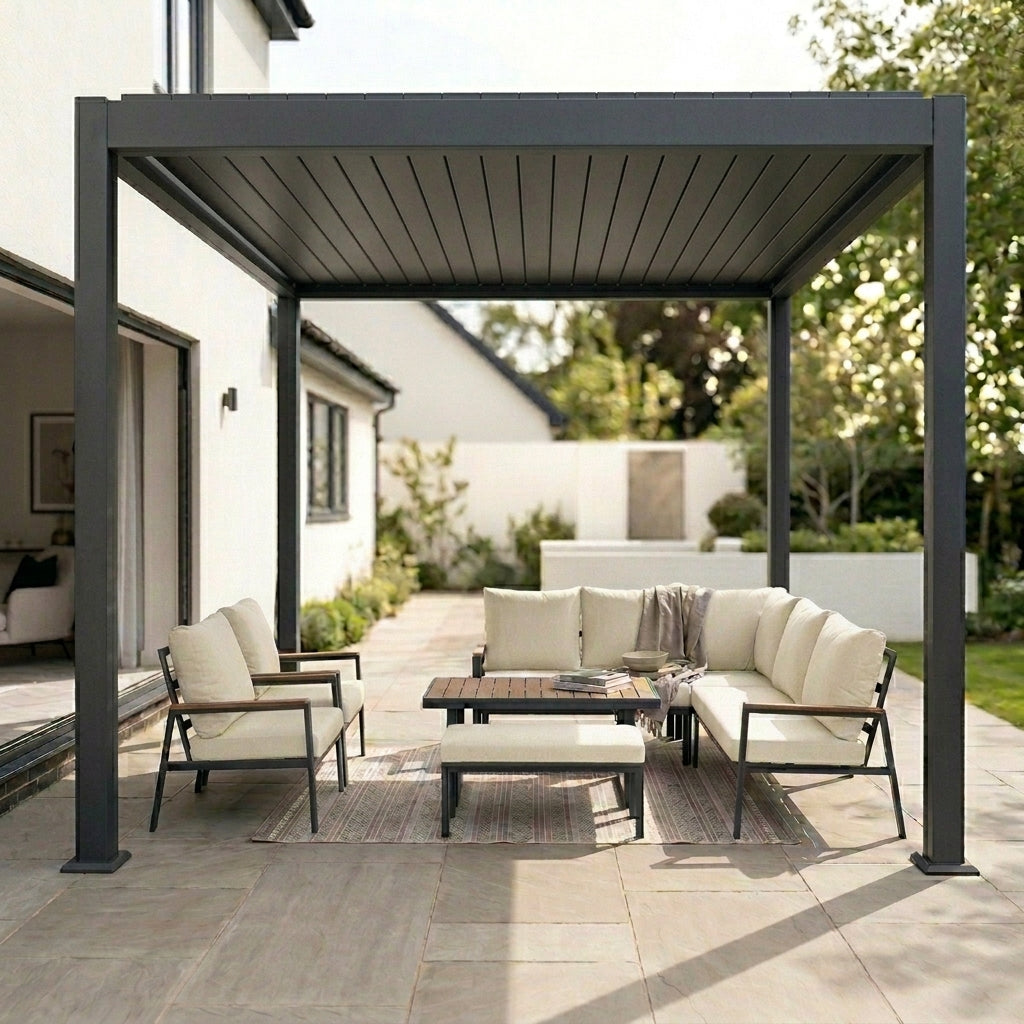

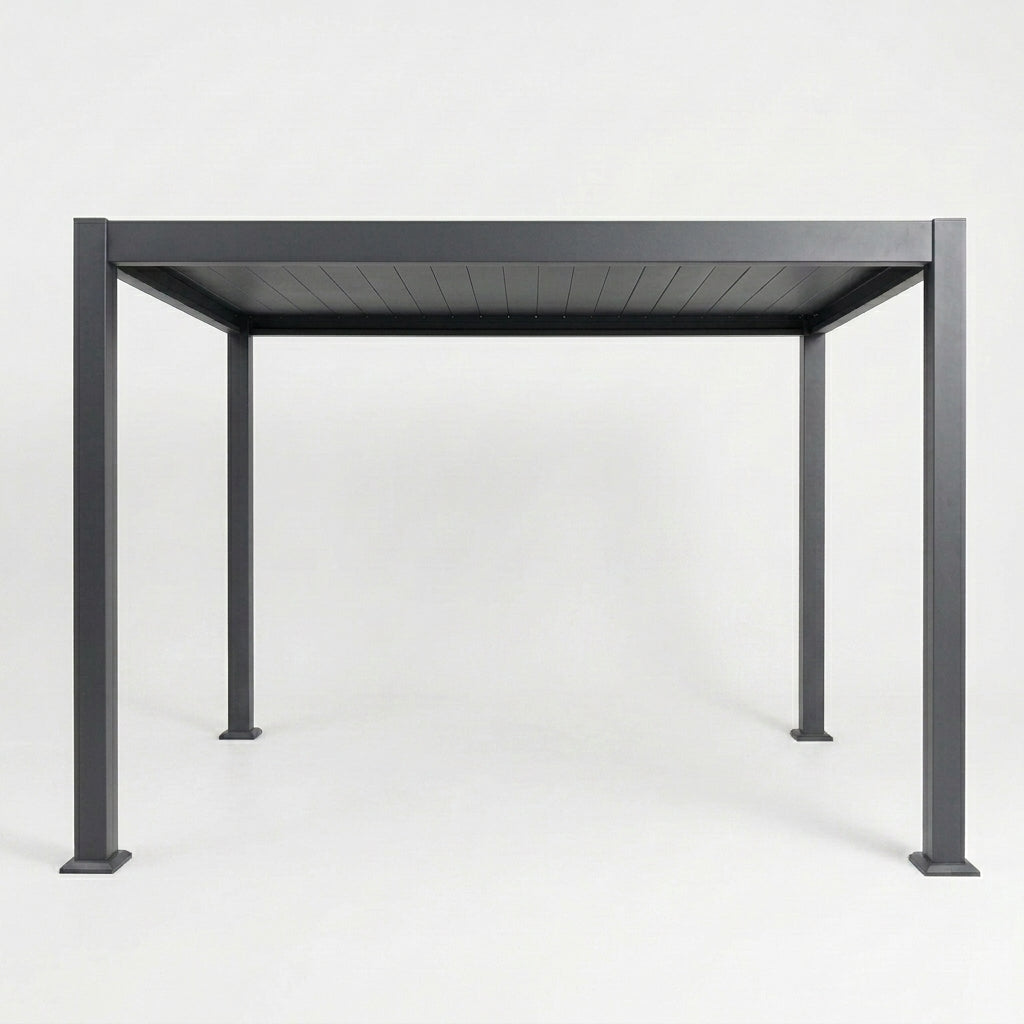

Meridian 4m x 3m Aluminium Louvred Pergola in Graphite Grey

Regular price £3,199.00
  • Generous 4m x 3m footprint: seats a six to eight seat dining set or a full lounge suite
  • Adjustable louvred roof: open for sun, tilt for shade, close for a watertight cover
  • Premium 6063-T5 aluminium and triple-layer powder coating for a rust-free, low-maintenance finish
  • Integrated guttering and concealed downpipes keep rain off your seating
  • 12cm leg profile for a premium, architectural silhouette
  • Free delivery, with professional installation available
Color: Graphite Grey
Optional Extras:

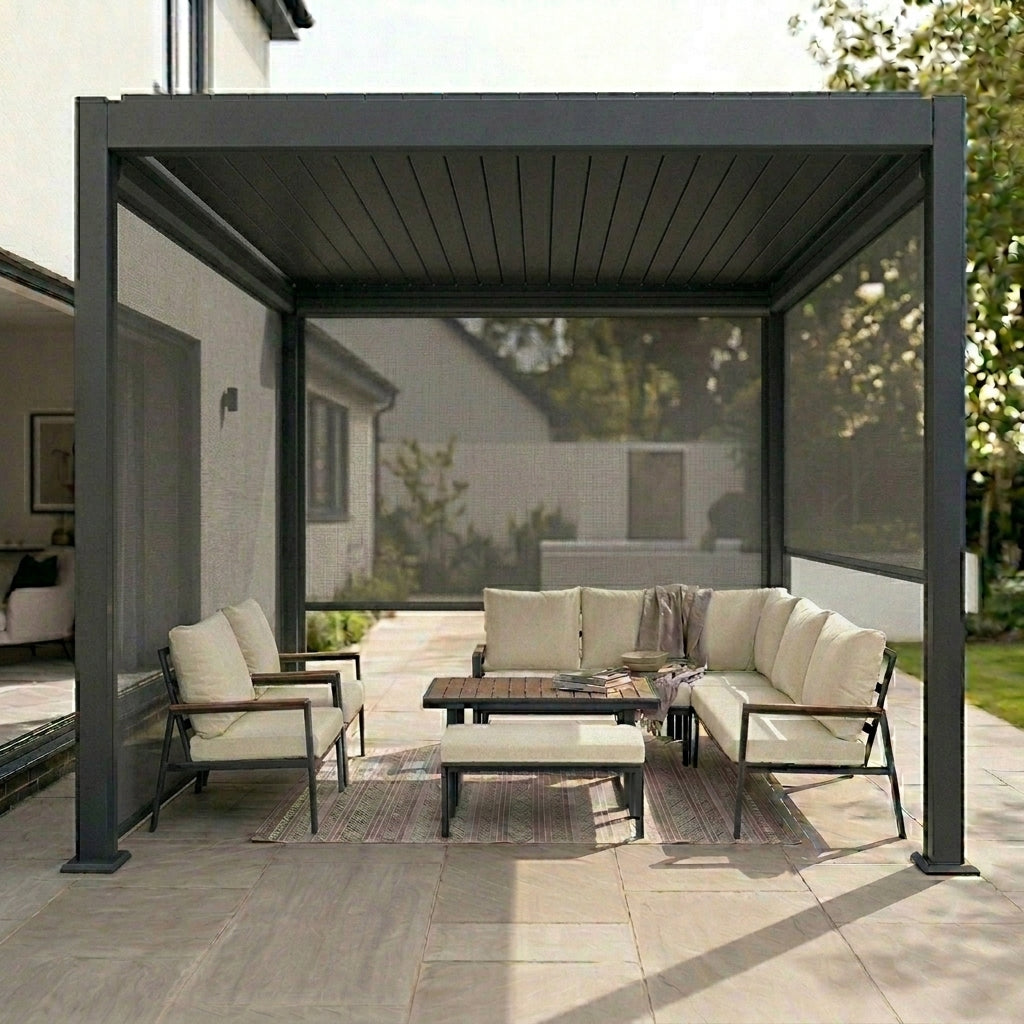

3m Pergola Blind

3m Pergola Blind

£450.00
In Stock
More Info
4m Pergola Blind

4m Pergola Blind

£499.00
In Stock
More Info
Pergola Installation Service (3m x 3m and 4m x 3m)

Pergola Installation Service (3m x 3m and 4m x 3m)

£500.00
In Stock
More Info

Product Overview

Designed to elevate any space, this furniture piece combines modern aesthetics with functional design.

Designed to create a more expansive outdoor room, the Meridian 4m x 3m aluminium pergola offers a generous rectangular footprint suited to hosting, dining and relaxed garden living. Its proportions create a clearly defined zone beneath the structure, ideal for larger patios and open entertaining spaces.
Constructed from 6063-T5 aluminium with Grade 304 stainless steel screws and stainless crank gears, the frame is corrosion-resistant, UV-stable and finished in a triple-layer powder coating for long-term durability. It is rated to withstand winds of up to 88 km/h, around Beaufort force 9 (a strong gale). The clean graphite grey silhouette adds architectural structure while staying understated and timeless.

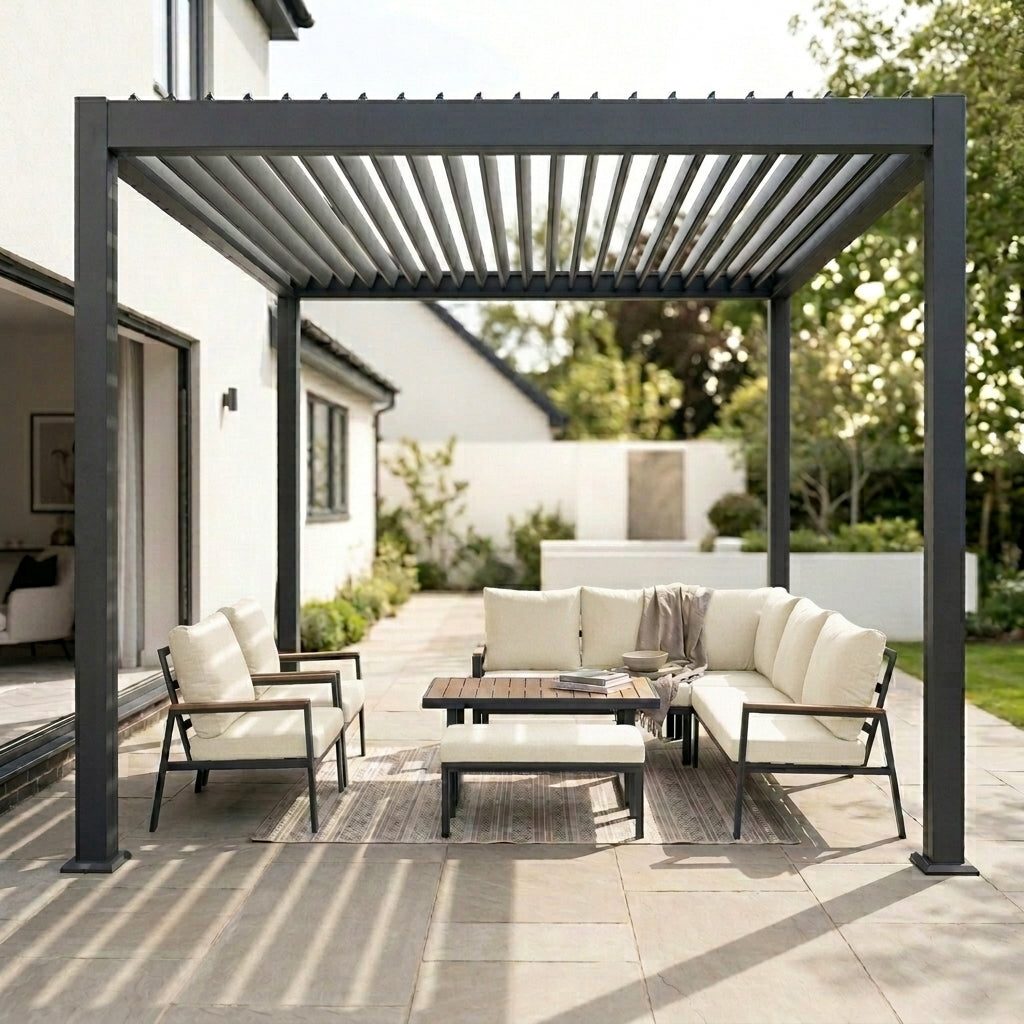

Precision-engineered double-layer louvres rotate up to 90 degrees to control light and airflow: open them for sun, tilt them for diffused shade, or close them fully for a watertight roof when it rains. An integrated drainage system carries rainwater through the frame and away from your seating, so the space stays usable when the weather turns. Add up to three manual side blinds to block low sun and wind, and pair it with a Cape & Co. furniture set to complete the room.

Read More

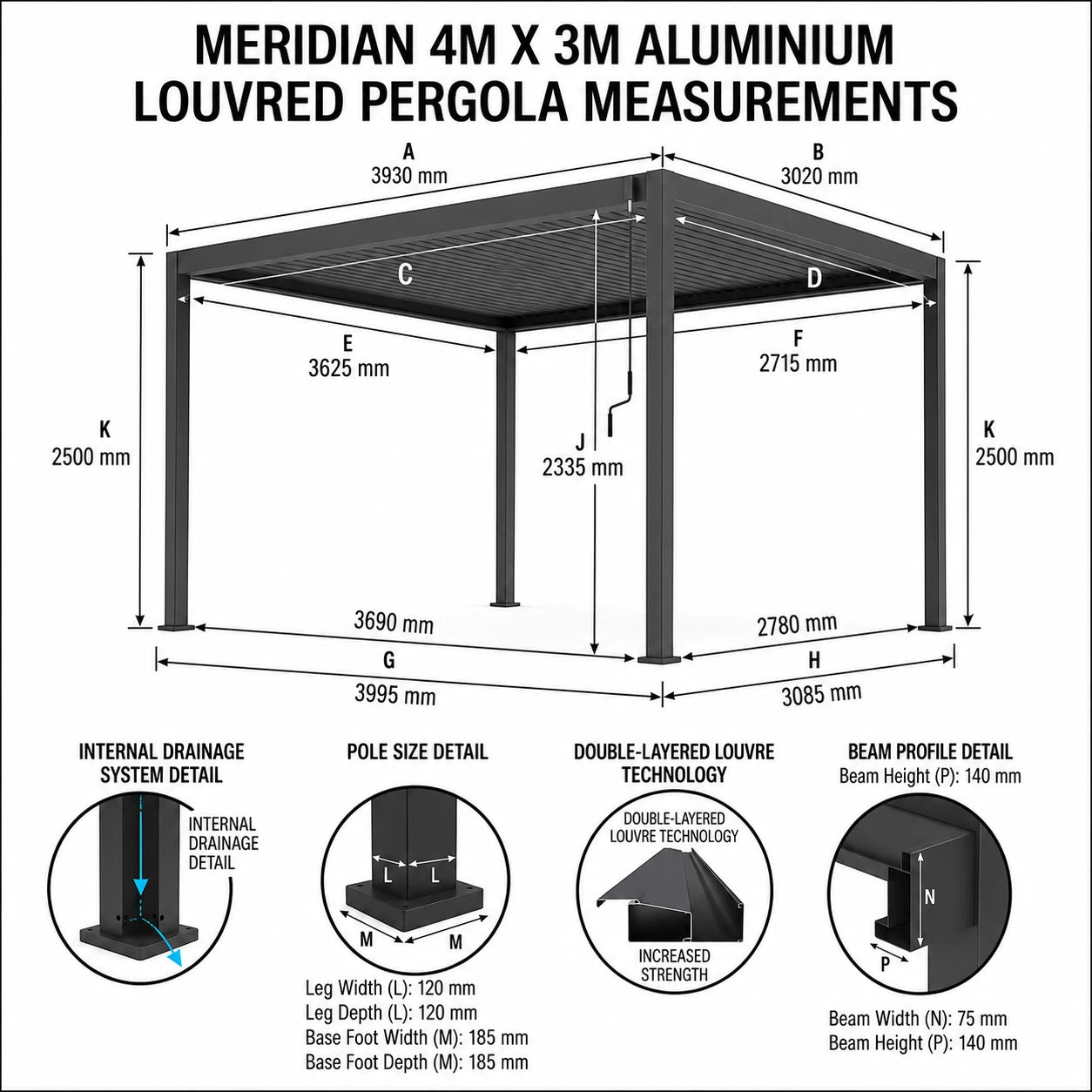

  • Overall footprint: 3,995mm x 3,085mm
  • Roof / covered area: approximately 11.9 m2 (roof frame 3,930 x 3,020mm)
  • Overall height: 2,500mm
  • Clearance height (under the beam): 2,335mm
  • Posts: 120mm x 120mm, on 185mm x 185mm base plates
  • Beams: 75mm wide x 140mm high
  • Louvre blades: 173mm x 30mm, double-walled, 90 degree rotation
  • Recommended base: a firm, level concrete or tiled surface for a secure fixing
  • Aluminium alloy: 6063-T5
  • Frame: posts 120 x 120mm, beams 140 x 75mm, 1.3mm wall
  • Finish: triple-layer powder coating, graphite grey
  • Roof louvres: double-walled, 173 x 30mm, rotate up to 90 degrees, clip-in with baffle plates
  • Operation: manual crank, 1:6 gear ratio, stainless steel gears
  • Drainage: integrated guttering with concealed downpipes
  • Wind resistance: up to 88 km/h (around 55 mph, Beaufort force 9)
  • Hardware: Grade 304 stainless steel screws
  • Side blinds: optional, aluminium frame with Textaline fabric
  • Colour: Graphite Grey
  • Warranty: structure 2 years; powder coating, crank gears and side blinds 1 year each
  • Delivery: included (free), UK mainland
  • Installation: Optional add-on, includes ground fixing
  • Lead time: 7 to 14 days
  • 1 x Meridian 4m x 3m aluminium louvred pergola frame, graphite grey
  • Double-layer adjustable louvre roof with manual crank
  • Integrated drainage system (guttering and concealed downpipes)
  • All fixings and ground anchors
  • Free delivery to your address (UK mainland)
  • Optional add-ons: professional installation and textaline side blinds.
  • Shade and shelter on demand: adjust the roof to suit the moment
  • Rainproof closed, breezy open: usable in sun or showers
  • Engineered for British weather, designed for year-round use
  • Quiet, smooth manual crank (1:6 stainless gears), no electrics to maintain
  • Custom-designed clip-in double-walled louvres with baffle plates and no exposed roof screws, making installation quick and simple
  • Discreet integrated drainage keeps the lines clean

Add professional installation at checkout and our team builds it and fixes it to the ground for you
Clean with mild soapy water and a soft cloth, then rinse and air dry
Close the louvres in very high winds
A firm, level concrete or tiled base is the ideal surface for installation
The powder-coated finish needs no painting or treatment

Read More

Fabric & Function

A premium aluminium louvred pergola engineered for refined, all-season British outdoor living.

What Our Customers Think

Reviews from gardens across the UK.

Frequently Asked Questions

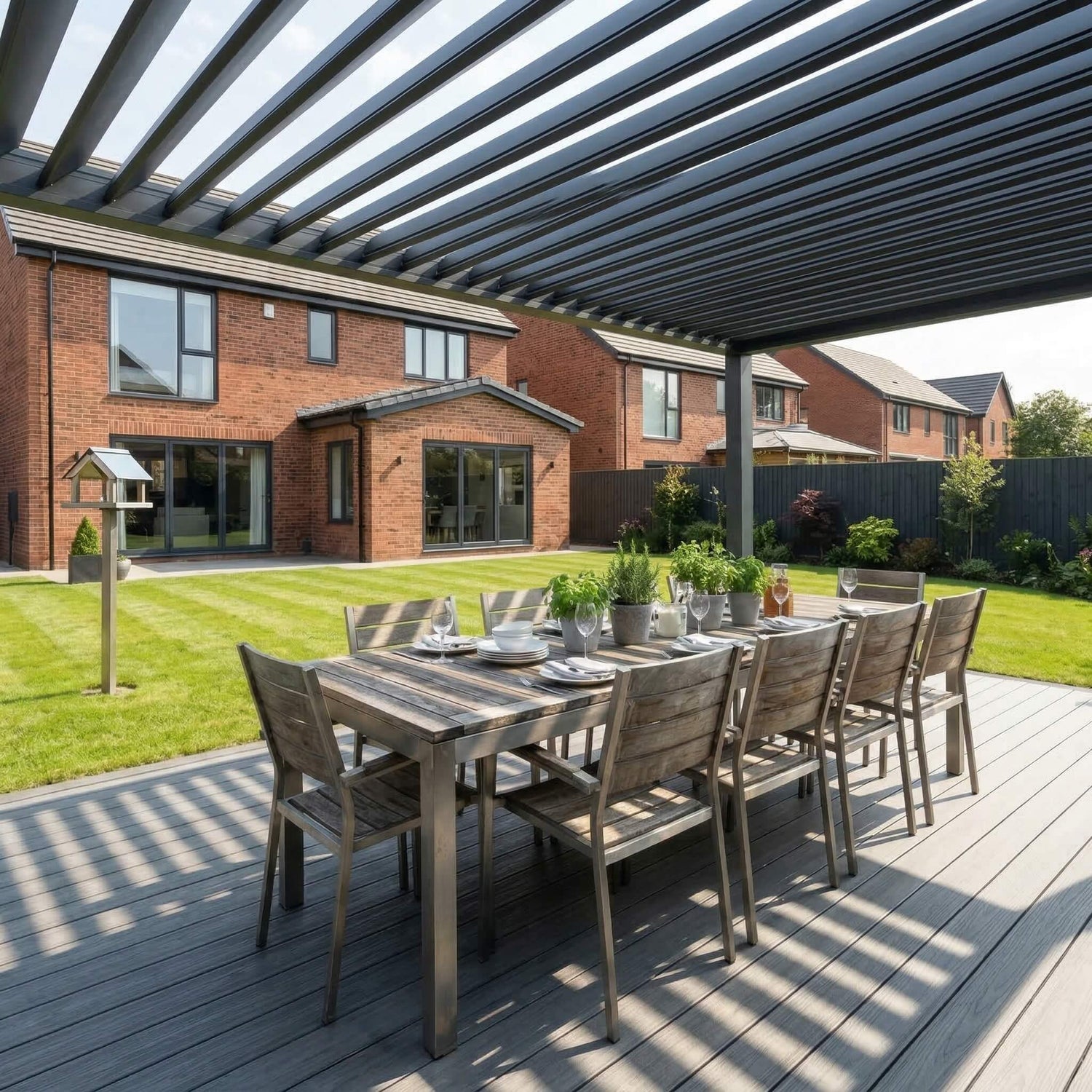

Yes. The Meridian 4m x 3m aluminium pergola comfortably accommodates both six and eight-seat outdoor dining sets. Its extended rectangular footprint provides generous clearance for chairs and movement, making it ideal for entertaining.

A 4m x 3m pergola offers flexible layout possibilities. You can position a dining set at one end and a lounge or sofa set at the other to create a zoned outdoor room. It also accommodates modular lounge sets, outdoor kitchens, sun loungers or statement entertaining layouts depending on your design preference.

Yes. The Meridian pergola is engineered for year-round British outdoor living. The adjustable louvres allow you to adapt to sunshine, showers and cooler conditions, making the space usable throughout the seasons.

When fully closed, the double-layer louvres provide reliable shelter from rain. The integrated drainage system channels water through the frame and down the legs, helping to keep the area below protected in typical UK conditions.

Yes. Delivery and professional installation are included for Mainland England. After ordering, you will be contacted to provide details and photographs of the installation area to confirm suitability before installation is scheduled.

No. In most standard residential settings, a 4m x 3m pergola does not require planning permission under permitted development rules, provided it is no higher than 2.5 metres and is not positioned forward of the principal elevation of the house.

If you are unsure about your specific property circumstances, it is always sensible to confirm with your local authority.
